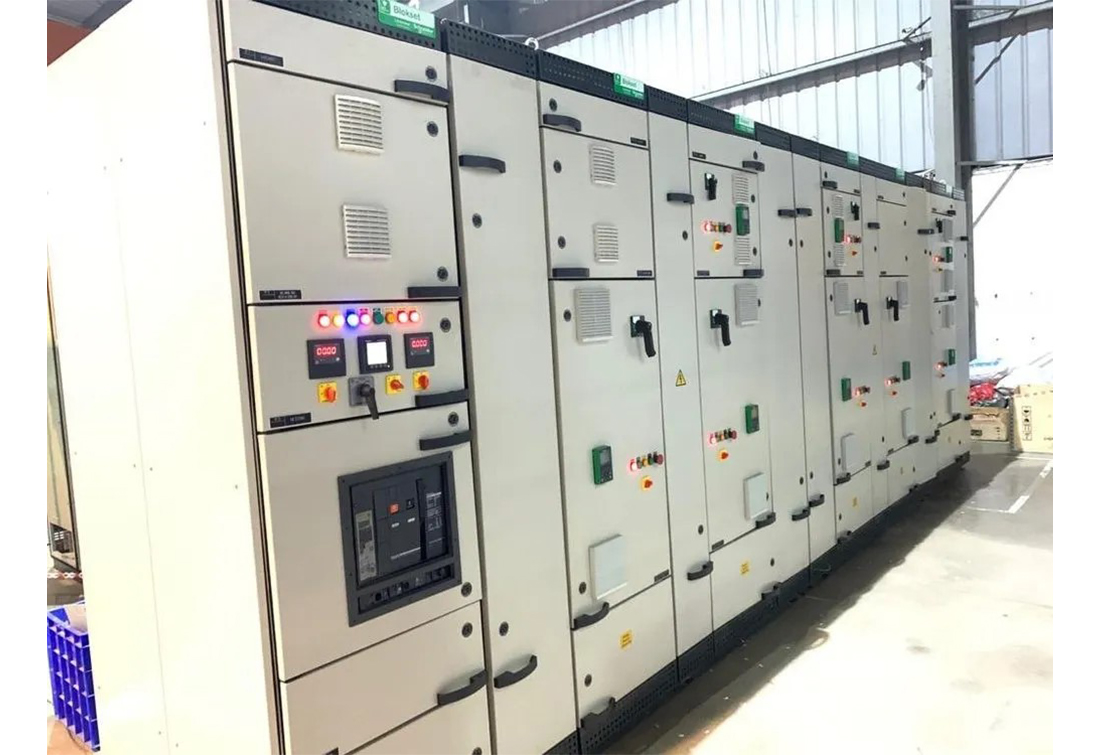

IMCC Panels

IMCC (Intelligent Motor Control Center) Panel represents the flexible and modular management-system for motors in the low Voltage range which can be easily and directly connected to superior automation system.

IMCC panels embody a suite of advanced features that revolutionize motor control and system management: Enhanced Process Efficiency: By integrating smart functionalities and streamlined control mechanisms, IMCC panels optimize the overall process, improving efficiency and operational workflows.

IMCC panel consists of feeders which are the same as that in MCC panel, but only differs by a device. It is a controller-type device which communicates all the electrical data from the feeder to the PLC or any other control device through any common protocol like Profibus or Profinet.

All the wiring from relays, contactors, and energy meters will directly go from them to PLC. This the efficiency and reliability of the system, as increased hardwiring increases complexities. The types of wires used are normally for feedback or control with respect to PLC. If a VFD is used in the feeder, then additional wiring of speed reference is increased.

To overcome this, IMCC device has a communication port that will then communicate the data to the PLC using only Profibus cabling or Profinet cabling. Due to local wiring and no use of external wiring with respect to PLC, the complexity and troubleshooting time are reduced to a great extent. So, basically, a feeder in MCC is the same as a feeder in IMCC.
